BSH1401T21A1A | Schneider Electric
AC servo motor, 480 V (AC), 2200 W, 37.1 A, 6.9 Nm, 4000 1/min, BSH1401T21A1A
Order No.: 02P3589
EAN: 4099891514129
MPN:
BSH1401T21A1A
Unit Price (€ / pc.)
2,691.3397 € *
Available: 0 pcs.
Leadtime: 2 Weeks **
Total Price:
2,691.34 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
2,691.3397 €

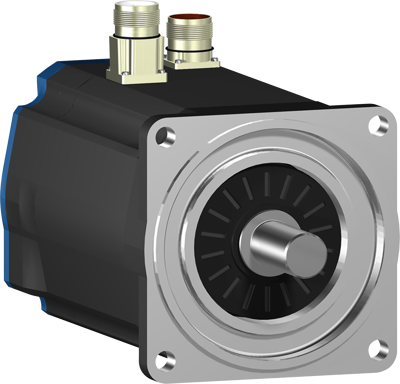

AC servo motor, BSH1401T21A1A, Schneider
BSH servo motor is the perfect answer to high dynamic requirements. With five flange sizes and the different lengths, they offer a solution for most applications.
Technical specifications
| speed | 4000 1/min | |
| Rated current | 37.1 A | |
| Power | 2200 W | |
| Rated voltage (AC) | 480 V | |
| Version | servo motor | |
| min. operating temperature | -40 °C | |
| Torque | 6.9 Nm | |
| max. operating temperature | 70 °C |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85015220 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
