BMP1402F3NA2A | Schneider Electric

Synchronous motor, 480 V (AC), 3.95 kW, 14.3 A, 9.55 Nm, 3000 1/min, BMP1402F3NA2A

Order No.: 06N1087
EAN: 3606480564505
MPN:
BMP1402F3NA2A
Series: ALTIVAR 32
BMP1402F3NA2A Schneider Electric Motors
Image may differ
Unit Price (€ / pc.)
1,965.4397 € *
Available in 3 Days: 9 pcs. - if ordered today
Total Price:
1,965.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
1,965.4397 €

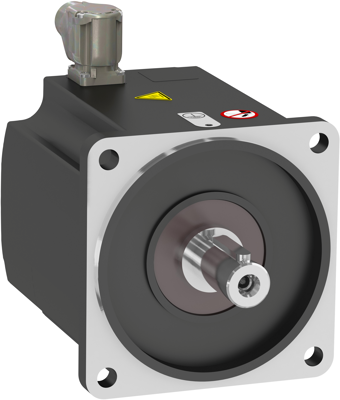

Synchronous motor, BMP1402F3NA2A, Schneider Electric

The BMP1402F3NA2A is a synchronous motor with a power rating of 3.95 kW, operating at 480 VAC, and meeting IP65 and IEC standards is denoted by the acronym BMP.

Technical specifications
Filter Property Value
Torque 9.55 Nm
Version synchronous motor
max. operating temperature 40 °C
speed 3000 1/min
Power 3.95 kW
Rated voltage (AC) 480 V
min. operating temperature 0 °C
Rated current 14.3 A
Logistics
Property Value
Customs tariff number 85015220
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
