BMP0702F3NA2A | Schneider Electric

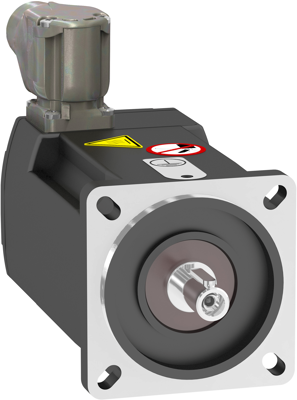

Synchronous motor, 480 V (AC), 0.55 kW, 2.9 A, 1.75 Nm, 3000 1/min, BMP0702F3NA2A

Order No.: 06N1081
EAN: 3606480564406
MPN:
BMP0702F3NA2A
Series: ALTIVAR 32
BMP0702F3NA2A Schneider Electric Motors
Image may differ
Unit Price (€ / pc.)
735.4438 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
735.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
735.4438 €

Synchronous motor, BMP0702F3NA2A, Schneider Electric

The BMP0702F3NA2A is a synchronous motor with a power rating of 0.55 kW, operating at 480 VAC, and meeting IP65 and IEC standards is denoted by the acronym BMP.

Technical specifications
Filter Property Value
Torque 1.75 Nm
speed 3000 1/min
min. operating temperature 0 °C
Rated current 2.9 A
max. operating temperature 40 °C
Rated voltage (AC) 480 V
Version synchronous motor
Power 0.55 kW
Logistics
Property Value
Customs tariff number 85015100
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free No
Date of RoHS guidelines 3/31/15
