BMP0701R3NA2A | Schneider Electric

Synchronous motor, 230 V (AC), 0.37 kW, 5 A, 1.18 Nm, 3000 1/min, BMP0701R3NA2A

Order No.: 06N1075
EAN: 3606480564390
MPN:
BMP0701R3NA2A
Series: ALTIVAR 32
BMP0701R3NA2A Schneider Electric Motors
Image may differ
Unit Price (€ / pc.)
592.4415 € *
Available in 3 Days: 39 pcs. - if ordered today
Total Price:
592.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
592.4415 €

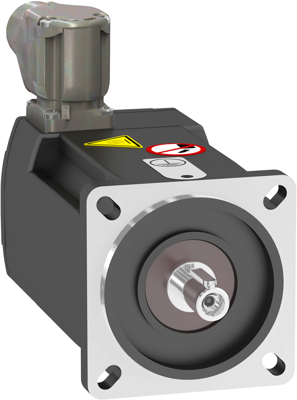

Synchronous motor, BMP0701R3NA2A, Schneider Electric

This BMP synchronous motor has a power rating of 0.37kW and works at a rated supply voltage 230V. It is designed with latest magnetic materials and an optimized design, result in shorter length at a comparable torque. It has maximum mechanical speed of 3600 rpm and its protection index is IP65. It is compatible with Altivar 32 and Altivar machine ATV320 variable speed drives. It is also RoHS compliant.

Features

  • Without holding brake
  • 70mm motor flange
  • Rotatable right angled electrical connection
Technical specifications
Filter Property Value
Torque 1.18 Nm
Version synchronous motor
max. operating temperature 40 °C
speed 3000 1/min
Power 0.37 kW
Rated voltage (AC) 230 V
min. operating temperature 0 °C
Rated current 5 A
Logistics
Property Value
Customs tariff number 85015100
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
