BMH1402P17A2A | Schneider Electric
Servo motor, 480 V (AC), 3550 W, 57.4 A, 12.2 Nm, 4000 1/min, BMH1402P17A2A
Unit Price (€ / pc.)
3,229.6005 € *
Available: 0 pcs.
Leadtime: On Request **
Total Price:
3,229.60 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
3,229.6005 €

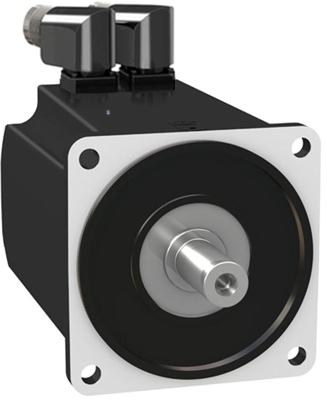

Servo motor, BMH1402P17A2A, Schneider
BMH motor is perfectly adapted to high load applications. With five flange sizes and the different lengths it offers a solution for all applications. Peak torques up to 330 Nm and speeds up to 10000 rpm.
Technical specifications
| Version | servo motor | |
| Torque | 12.2 Nm | |
| speed | 4000 1/s | |
| Power | 3550 W | |
| max. operating temperature | 70 °C | |
| min. operating temperature | -40 °C | |
| Rated voltage (AC) | 480 V | |
| Rated current | 57.4 A |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85015220 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME) |
| Sustainable | Yes |
