Schneider Electric

BMH1002T07A2A | Schneider Electric

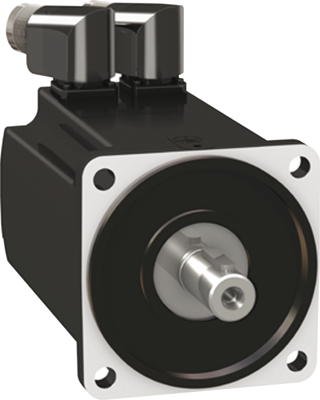

Servo motor, 230 V (AC), 1450 W, 30.24 A, 4.6 Nm, 6000 1/min, BMH1002T07A2A

default S
default L
Total price
(2,164.31 € * / pcs.)
0.00 €
Currently not in stock, we will order for you
Quantity
Price per piece*
1 pcs.
2,164.31 €
*incl. VAT plus shipping costs
Description

Product by Schneider Electric at Bürklin Elektronik

Motors, Schneider Electric

Servo motor, BMH1002T07A2A, Schneider

BMH motor is perfectly adapted to high load applications. With five flange sizes and the different lengths it offers a solution for all applications. Peak torques up to 330 Nm and speeds up to 10000 rpm.

Technical specifications
Version Servo motor
Torque 4.6 Nm
speed 6000 1/s
Power 1450 W
max. operating temperature 70 °C
min. operating temperature -40 °C
Rated voltage (AC) 230 V
Rated current 30.24 A
Logistics
Country of origin DE
Customs tariff number 85015220
Compliance
Exception code 6A_7A_7C-I
Exception code description Pb
Guidline date 3/31/15
RoHS confom Yes
Substance CAS number 7439-92-1
Substance code 1221
Substance EC number 231-100-4
Substance description Lead
SVHC date 1/16/20
SVHC free No
Download
Technical Data Sheet - DE
Technical Data Sheet
Technical Data Sheet - EN
Technical Data Sheet
