LRD35 | Schneider Electric

Motor protection relay, 3 pole, 30 to 38 A, screw connection, LRD35

Order No.: 03P4349
EAN: 3389110346862
MPN:
LRD35
Series: TeSys LRD

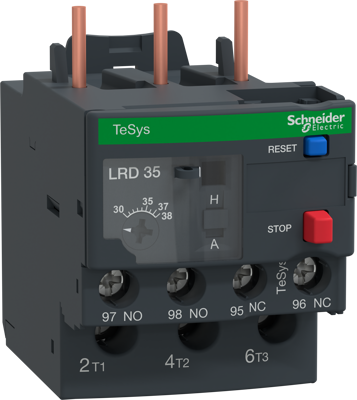

LRD35 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
95.3785 € *
Available in 3 Days: 18 pcs. - if ordered today
Total Price:
95.38 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
95.3785 €

Motor protection relay, LRD35, Schneider Electric

TeSys LRD thermal overload relay, 38A/690V, thermal setting range 30-38A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D32-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications
Filter Property Value
Connection screw connection
Version motor protection relay
Degree of protection (IP) IP20
Release 30 to 38 A
Pin number 3 pole
rated voltage (AC) 690 V
Assembly DIN rail/screw fixing
Actuator pushbutton
Network frequency 400 Hz
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
