LRD340 | Schneider Electric

Motor protection relay, 3 pole, 30 to 40 A, screw connection, LRD340

Order No.: 03P4343
EAN: 3389119215497
MPN:
LRD340
Series: TeSys LRD

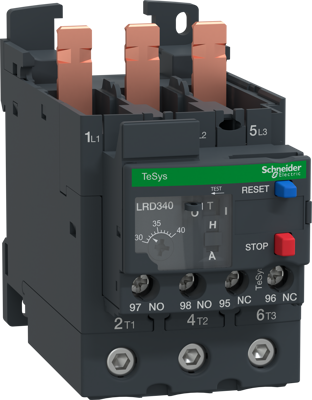

LRD340 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
106.505 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
106.51 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
106.505 €

Motor protection relay, LRD340, Schneider Electric

TeSys LRD thermal overload relay, 40A/690V, thermal setting range 30-40A, tripping class 10A, for protection of 3-phase motors 18.5kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by EverLink BTR screw terminals , it connects directly to the bottom terminals of 3-pole contactors LC1D40A-D80A. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD96560 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications
Filter Property Value
Assembly DIN rail/screw fixing
Version motor protection relay
Actuator pushbutton
Connection screw connection
rated voltage (AC) 690 V
Degree of protection (IP) IP20
Release 30 to 40 A
Pin number 3 pole
Network frequency 400 Hz
Logistics
Property Value
Customs tariff number 85364190
Country of origin FR
Compliance
Property Value
Sustainable Yes
SVHC free Yes
RoHS conform Yes
Date of RoHS guidelines 3/31/15
