Motor protection relay, 3 pole, 90 to 150 A, screw connection, LR9D69

Order No.: 03P4223
EAN: 3606485335797
MPN:
LR9D69
Series: TeSys LRD
LR9D69 Schneider Electric Motor Protection Switches

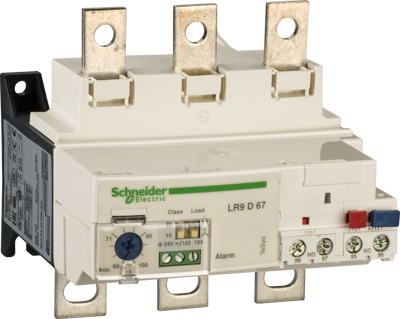

Image may differ
Unit Price (€ / pc.)
436.6943 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
436.69 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
436.6943 €

Motor protection relay, LR9D69, Schneider Electric

TeSys LR9D electronic overload relay, 150A/1000V, thermal setting range 90-150A, selectable tripping class 10-20, for protection of 3-phase motors 55-75kW@400V. Relay for balanced or unbalanced loads, it includes also an overload alarm function prior to the overload tripping to allow load shedding management. It provides a thermal adjustement dial, buttons for test, stop and reset, dispswitches for balanced/unbalanced load type and tripping class selection, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Multi-standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications
Filter Property Value
Connection screw connection
Version motor protection relay
Degree of protection (IP) IP20
Release 90 to 150 A
Pin number 3 pole
rated voltage (AC) 690 V
Assembly DIN rail/screw fixing
Actuator pushbutton
Network frequency 400 Hz
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
