Motor protection relay, 3 pole, 60 to 100 A, screw connection, LR9D5567

Order No.: 03P4220
EAN: 3389110113105
MPN:
LR9D5567
Series: TeSys LRD
LR9D5567 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
381.5378 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
381.54 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
381.5378 €

Motor protection relay, LR9D5567, Schneider Electric

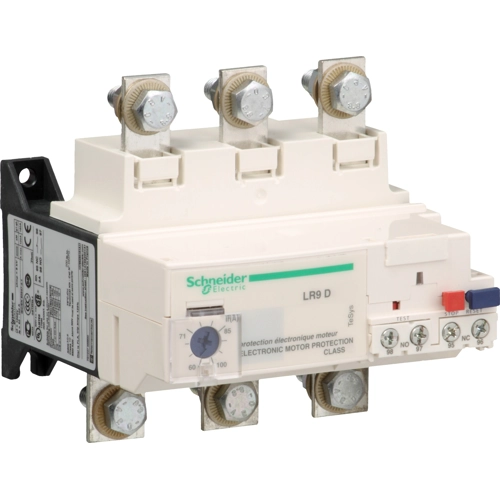

TeSys LR9D electronic overload relay, 100A/1000V, thermal setting range 60-100A, tripping class 20, for protection of 3-phase motors 37-45kW@400V. Differential device with phase failure and load unbalance detection. It provides a thermal adjustement dial, buttons for test, stop and reset, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by bolt terminals for bars or cables with lugs, it connects directly to the bottom terminals of 3-pole contactors LC1D115, D150. Mounting on DIN rail or screw fixing, separated from contactor, can be done without accessories. Multi-standards certified (IEC, UL, CSA, CCC, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications
Filter Property Value
Connection screw connection
Version motor protection relay
Degree of protection (IP) IP20
Release 60 to 100 A
Pin number 3 pole
rated voltage (AC) 690 V
Assembly DIN rail/screw fixing
Actuator pushbutton
Network frequency 400 Hz
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
