Motor protection relay, 3 pole, 630 mA to 1 A, 1 A, screw connection, LR3D05

Order No.: 03P4182
EAN: 3389110346916
MPN:
LR3D05
Series: TeSys LRD
LR3D05 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
79.2183 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
79.22 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
79.2183 €

Motor protection relay, LR3D05, Schneider Electric

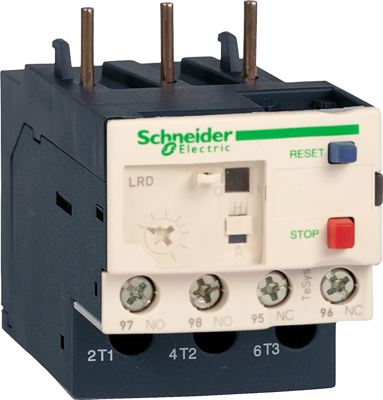

TeSys LRD thermal overload relay, 1A/690V, thermal setting range 0.63-1A, tripping class 10A, for protection of 3-phase motors 0.25-0.37kW@400V. Non differential device, it can be used with unbalanced loads. It provides a thermal adjustement dial, a manual-automatic reset selector, a test selector for simulation of a tripping, reset and stop buttons, a flag indicator and 2 auxiliary contacts 1NO+1NC for fault signalling. Settings are protected by a transparent cover lockable by sealing. Connection by screw clamp terminals, it connects directly to the bottom terminals of 3-pole contactors LC1D09-D38. Mounting on DIN rail or screw fixing, separated from the contactor, with use of a terminal block LAD7B106 (to be ordered separately). Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine), Green Premium compliant (RoHs/Reach).

Technical specifications
Filter Property Value
Connection screw connection
Version motor protection relay
Degree of protection (IP) IP20
Release 630 mA to 1 A
Pin number 3 pole
rated voltage (AC) 690 V
Assembly DIN rail/screw fixing
Actuator pushbutton
Network frequency 400 Hz
Rated current 1 A
Logistics
Property Value
Customs tariff number 85364900
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
