GV3P25 | Schneider Electric

Motor protection switch, 3 pole, 17 to 25 A, 11 kW, 25 A, screw connection, GV3P25

Order No.: 02P6916
EAN: 3389119405379
MPN:
GV3P25
Series: TeSys GV3

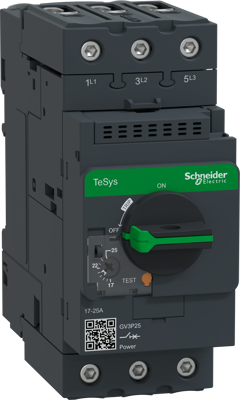

GV3P25 Schneider Electric Motor Protection Switches
Image may differ
Unit Price (€ / pc.)
173.7757 € *
Available in 3 Days: 33 pcs. - if ordered today
Total Price:
173.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
173.7757 €

Motor circuit breaker, GV3P25, Schneider Electric

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 17-25A, magnetic tripping at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 50 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical specifications
Filter Property Value
Connection screw connection
Version motor protection switch
Degree of protection (IP) IP20
Release 17 to 25 A
Pin number 3 pole
rated voltage (AC) 690 V
Assembly DIN rail
Engine power 11 kW
Actuator rotary knob
Network frequency 50/60 Hz
Rated current 25 A
Logistics
Property Value
Customs tariff number 85362010
Country of origin FR
Compliance
Property Value
Substance description Lead
Sustainable Yes
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
