GV2ME22 | Schneider Electric

Motor protection switch, 3 pole, 20 to 25 A, 11 kW, 25 A, screw connection, GV2ME22

Order No.: 02P6809

EAN: 3389110343250

MPN:

GV2ME22

Series: TeSys GV2

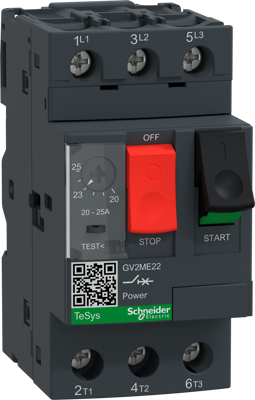

Image may differ

Key Specification:

Version motor protection switch

Pin number 3 pole

Release 20 to 25 A

Engine power 11 kW

Rated current 25 A

Download Datasheet Technical specifications

As a private customer, you can buy this item as soon as we have it back in stock.

Description

Motor circuit breaker, GV2ME22, Schneider Electric

TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for 3-phase motor applications 11kW@400V. It provides a thermal-magnetic protection with a thermal setting range 20-25A, magnetic tripping at 13xIn, high breaking capacity Icu 15kA@400V. Connection by screw clamp terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).

Technical specifications

Filter	Property	Value
	Degree of protection (IP)	IP20
	Assembly	DIN rail
	Connection	screw connection
	Rated current	25 A
	rated voltage (AC)	690 V
	Version	motor protection switch
	Pin number	3 pole
	Engine power	11 kW
	Release	20 to 25 A
	Actuator	pushbutton
	Network frequency	50/60 Hz
