GV2ME073 | Schneider Electric
Motor protection switch, 3 pole, 1.6 to 2.5 A, 1 kW, 2.5 A, spring terminals, GV2ME073
Unit Price (€ / pc.)
71.1858 € *
Available: 1 pcs.
Available in 3 Days: 39 pcs. - if ordered today
Total Price:
71.19 € *
Price list
Quantity
Price per unit*
1 pcs.
71.1858 €
5 pcs.
69.2699 €
*incl. VAT plus shipping costs
Subject to prior sale

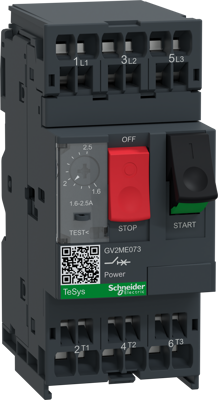

Motor circuit breaker, GV2ME073, Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 2.5A/690V, for 3-phase motor applications 0.75kW@400V. It provides a thermal-magnetic protection with a thermal setting range 1.6-2.5A, magnetic tripping at 13xIn, high breaking capacity Icu 100kA@400V. Connection by spring terminals. Start-stop control by push-button guaranteed for 100 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Network frequency | 50/60 Hz | |
| Connection | spring terminals | |
| Degree of protection (IP) | IP20 | |
| Release | 1.6 to 2.5 A | |
| rated voltage (AC) | 690 V | |
| Engine power | 1 kW | |
| Assembly | DIN rail | |
| Actuator | pushbutton | |
| Version | motor protection switch | |
| Pin number | 3 pole | |
| Rated current | 2.5 A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
