GV2L32 | Schneider Electric
Motor protection switch, 3 pole, 15 kW, 32 A, screw connection, GV2L32
Unit Price (€ / pc.)
149.3093 € *
Standard delivery time from the manufacturer is: 1 Week

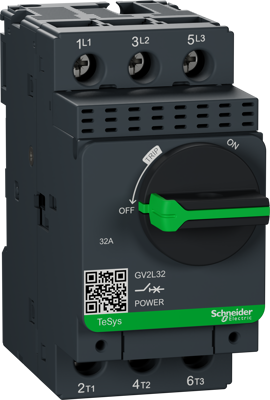

Motor circuit breaker, GV2L32, Schneider Electric
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a magnetic protection with a tripping level at 13xIn, high breaking capacity Icu 50kA@400V. Connection by screw clamp terminals. Start-stop control by rotary handle guaranteed for 100 000 cycles AC-3. To complete motor protection, use in association with a thermal overload relay LRD32 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Pin number | 3 pole | |
| Actuator | rotary knob | |
| Degree of protection (IP) | IP20 | |
| Rated current | 32 A | |
| Version | motor protection switch | |
| Connection | screw connection | |
| Assembly | DIN rail | |
| Network frequency | 50/60 Hz | |
| rated voltage (AC) | 690 V | |
| Engine power | 15 kW |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85362010 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
