LMC101CAA10000 | Schneider Electric
Motion Controller LMC101 - 4 Achsen, Zubehörset inklusive - Basis
Unit Price (€ / pc.)
3,269.7273 € *
Standard delivery time from the manufacturer is: 1 Week

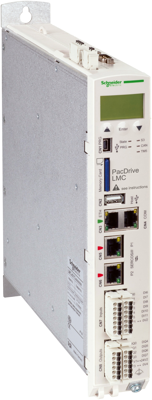

Motion controller, LMC101CAA10000, Schneider Electric
This product is part of the PacDrive 3 range, an offer of motion controllers for automating machines/lines. This motion controller offers 4 axis, 8 discrete inputs, 4 for touch probe input conforming to IEC 61131-2 type 1. It is a motion controller with a rated supply voltage of 24VDC, a discrete output current of 500mA and a power consumption of 30W. It is an IP20 rated product. Its dimensions are 44mm (width) x 222mm (depth) x 270mm (height). It weighs 2.2kg. This product is certified by CULus, CSA, CE, EAC. It meets CSA C22.2 No 14, CSA C22.2 No 274, EN/IEC 61131-2, UL 508C standards.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of I/Os | 8 | |
| Height | 270 mm | |
| Version | motion controller | |
| Assembly | DIN rail | |
| Depth | 222 mm | |
| Width | 44 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85371091 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
| SVHC free | No |
| Substance description | lead, benzene-1,2,4-tricarboxylic acid-1,2-anhydride |
| RoHS conform | Yes |
