RM35JA31MW | Schneider Electric

Current relay, 2 Form C (NO/NC), 5 A, 250 V (AC), RM35JA31MW

Order No.: 04P5781
EAN: 3389119405218
MPN:
RM35JA31MW
Series: Zelio Control

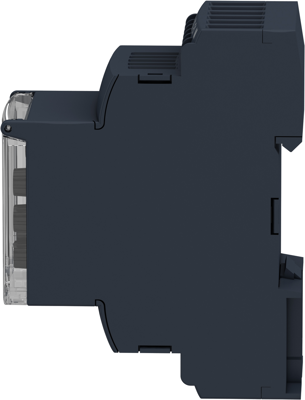

RM35JA31MW Schneider Electric Monitoring Relays Image 1

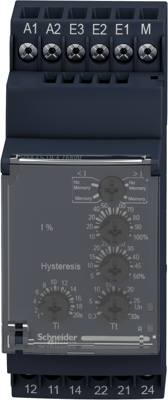

RM35JA31MW Schneider Electric Monitoring Relays Image 2

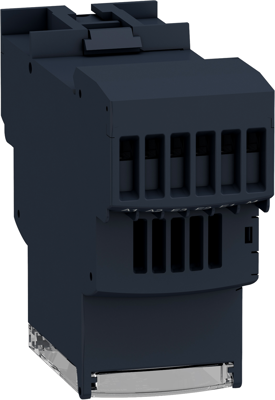

RM35JA31MW Schneider Electric Monitoring Relays Image 3

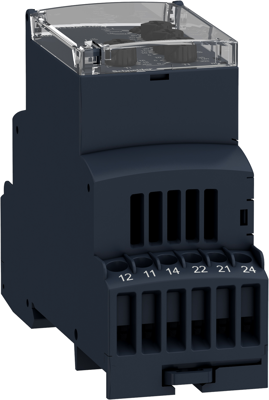

RM35JA31MW Schneider Electric Monitoring Relays Image 4

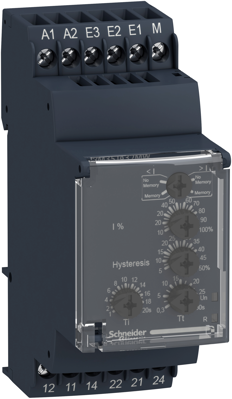

RM35JA31MW Schneider Electric Monitoring Relays Image 5
Image may differ
Unit Price (€ / pc.)
109.9798 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
109.98 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
109.9798 €

Current monitor, RM35JA31MW, Schneider Electric

This Zelio RM35-JA relay allows monitoring of current control in single phase networks. This modular multi function single phase current control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC.

Technical specifications
Filter Property Value
Breaking capacity 1250 VA
Switching Voltage (AC) 250 V
switching current 5 A
Contact material cadmium-free
Contact type 2 Form C (NO/NC)
Connection screw connection
Logistics
Property Value
Customs tariff number 85371098
Country of origin ID
Compliance
Property Value
Substance description 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME)
Sustainable Yes
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
