NSYSFND228T | Schneider Electric
Door, glazed, (H x W) 2200 x 800 mm, NSYSFND228T
Glazed door, NSYSFND228T, Schneider Electric

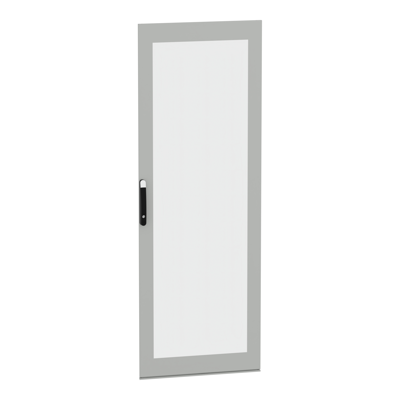

This inspection door is specially designed for mounting a PanelSeT SFN floor-standing enclosure made of decarbonised steel for various applications. It is compatible with the PanelSeT SM floor standing enclosure made of steel. The door is made of sheet steel and safety glass, while the handle is made of polyamide 6 with 30 % glass fibre content. An epoxy-polyester powder coating ensures an even appearance. It has a grey (RAL 7035) colour with a black (RAL 9005) handle. It has an opening angle of up to 120 degrees and is reversible, meaning it can be opened from both sides. The door is fitted with a four-point lock and a handle with a 5 mm double-bit for security. This product is categorised as Green Premium. This product is categorised as Green Premium.
Features
- Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
- The handle design is both aesthetic and ergonomic and makes opening and closing easier
- Sturdy, robust, and durable for maximum component protection
- Reusable, environmentally friendly packaging with a significant reduction in single-use plastics
| Product type | door | |
| Height | 2200 mm | |
| Degree of protection (IP) | IK08 | |
| Width | 800 mm | |
| Colour | gray | |
| Version | glazed |
| Country of origin | FR |
| Customs tariff number | 94039910 |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
