NSYSFND2210T | Schneider Electric

Door, glazed, (H x W) 2200 x 1000 mm, NSYSFND2210T

Order No.: 06P8254
EAN: 3606486378403
MPN:
NSYSFND2210T
Series: PanelSet SFN
NSYSFND2210T Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
596.8445 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
596.84 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
596.8445 €

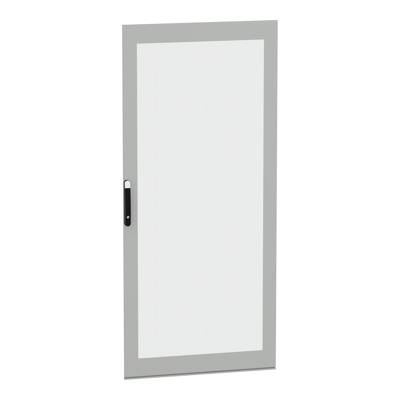

Glazed door, NSYSFND2210T, Schneider Electric

This glazed door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It is compatible with PanelSeT SM floor standing steel enclosure. The door is made of steel sheet and Securit glass, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security. This product is qualified as a green premium, with minimal use of hazardous substances. This product is qualified as a green premium, with minimal use of hazardous substances.

Features

  • Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
  • The handle design is both aesthetic and ergonomic, making it easier to open and close
  • Sturdy, robust, and durable for maximum component protection
  • Reusable eco-friendly packaging with significant cancelation of single use plastics
Technical specifications
Product type door
Height 2200 mm
Degree of protection (IP) IK08
Width 1000 mm
Colour gray
Version glazed
Logistics
Country of origin FR
Customs tariff number 94039910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
