NSYSFND206T | Schneider Electric

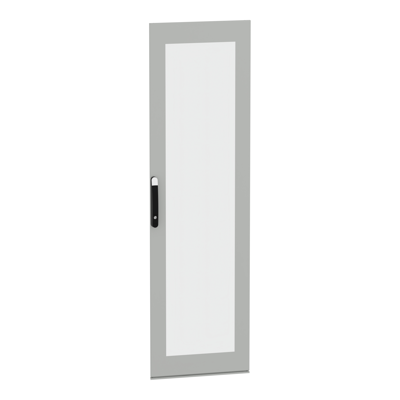

Door, glazed, (H x W) 2000 x 600 mm, NSYSFND206T

Order No.: 06P8248
EAN: 3606486378342
MPN:
NSYSFND206T
Series: PanelSet SFN
NSYSFND206T Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
375.7425 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
375.74 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
375.7425 €

Glazed door, NSYSFND206T, Schneider Electric

This inspection door is specially designed for mounting a PanelSeT SFN floor-standing enclosure made of decarbonised steel for various applications. It is compatible with the PanelSeT SM floor standing enclosure made of steel. It has a nominal height and width of 2200 mm and 1000 mm respectively. The door is made of sheet steel and safety glass, while the handle is made of polyamide 6 with 30% glass fibre content. An epoxy-polyester powder coating ensures an even appearance. It has a grey (RAL 7035) colour with a black (RAL 9005) handle. It has an opening angle of up to 120 degrees and is reversible, meaning it can be opened from both sides. The door is fitted with a four-point lock and a handle with a 5 mm double-bit for security. This product is categorised as Green Premium.

Features

  • Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
  • The handle design is both aesthetic and ergonomic and makes opening and closing easier
  • Sturdy, robust, and durable for maximum component protection
  • Reusable, environmentally friendly packaging with a significant reduction in single-use plastics
Technical specifications
Product type door
Height 2000 mm
Degree of protection (IP) IK08
Width 600 mm
Colour gray
Version glazed
Logistics
Country of origin FR
Customs tariff number 94039910
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
RoHS conform Yes
SVHC free No
