NSYSFND203 | Schneider Electric

Door, 1 pieces, (H x W) 2000 x 300 mm, NSYSFND203

Order No.: 06P8224
EAN: 3606486378083
MPN:
NSYSFND203
Series: PanelSet SFN
NSYSFND203 Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
154.2002 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
154.20 € *
Price list
Quantity
Price per unit*
1 pcs.
154.2002 €
2 pcs.
150.4279 €
*incl. VAT plus shipping costs
Subject to prior sale

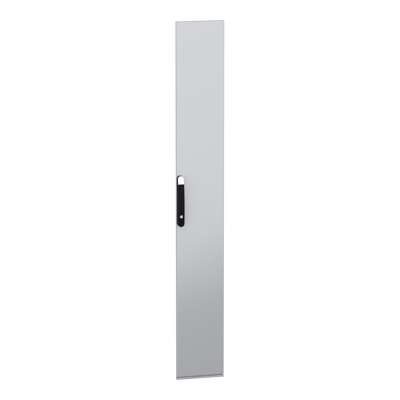

Plain door, NSYSFND203, Schneider Electric

This steel door is specially designed for the assembly of a PanelSeT SFN floor standing enclosure made of decarbonised steel for various applications. It is compatible with the PanelSeT SM floor standing enclosure made of steel. It has a nominal height and width of 2000 mm and 300 mm respectively. The door is made of sheet steel, while the handle is made of polyamide 6 with 30% glass fibre content. An epoxy-polyester powder coating ensures an even appearance. It has a grey (RAL 7035) colour with a black (RAL 9005) handle. It has an opening angle of up to 120 degrees and is reversible, meaning it can be opened from both sides. The door is fitted with a four-point lock and a handle with a 5 mm double-bit for security. This product is categorised as Green Premium.

Features

  • Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
  • The handle design is both aesthetic and ergonomic and makes opening and closing easier
  • Sturdy, robust, and durable for maximum component protection
  • Reusable, environmentally friendly packaging with a significant reduction in single-use plastics
Technical specifications
Filter Property Value
Degree of protection (IP) IK10
Product type door
Width 300 mm
Height 2000 mm
Version 1 pieces
Colour gray
Logistics
Property Value
Country of origin FR
Customs tariff number 94039910
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
