NSYSFND20162D | Schneider Electric

Door, 2 pieces, (H x W) 2000 x 1600 mm, NSYSFND20162D

Order No.: 06P8232
EAN: 3606486378175
MPN:
NSYSFND20162D
Series: PanelSet SFN
NSYSFND20162D Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
474.2031 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
474.20 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
474.2031 €

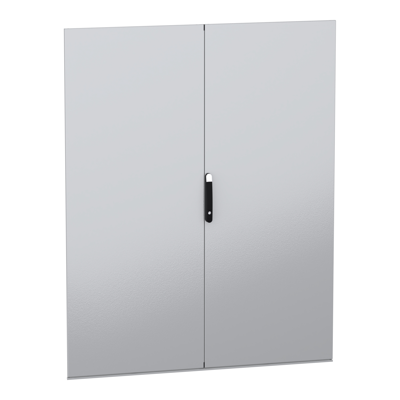

Double plain door, NSYSFND20162D, Schneider Electric

This steel double door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It is compatible with PanelSeT SM floor standing steel enclosure. It has a nominal height and width of 2000 mm and 1600 mm, respectively. The doors are made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. They have an aperture up to 120 degrees. The main door has a four-point lock with a handle that has a 5 mm double-bar insert for security, while the secondary door has a locking bar system with a handle. Minimal use of hazardous substances.

Features

  • Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
  • The handle design is both aesthetic and ergonomic, making it easier to open and close
  • Sturdy, robust, and durable for maximum component protection
  • Reusable packaging with significant cancelation of single use plastics
Technical specifications
Filter Property Value
Degree of protection (IP) IK10
Product type door
Width 1600 mm
Height 2000 mm
Version 2 pieces
Colour gray
Logistics
Property Value
Country of origin FR
Customs tariff number 94039910
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
