NSYSFND2010 | Schneider Electric

Door, 1 pieces, (H x W) 2000 x 1000 mm, NSYSFND2010

Order No.: 06P8229
EAN: 3606486378144
MPN:
NSYSFND2010
Series: PanelSet SFN
NSYSFND2010 Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
224.7791 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
224.78 € *
Price list
Quantity
Price per unit*
1 pcs.
224.7791 €
2 pcs.
219.2932 €
*incl. VAT plus shipping costs
Subject to prior sale

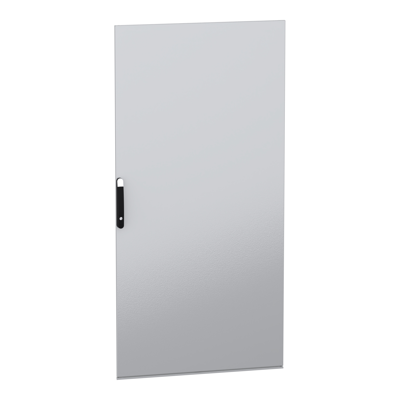

Plain door, NSYSFND2010, Schneider Electric

This steel door is purpose-built to assemble a PanelSeT SFN floor standing modular decarbonized steel electrical enclosure for various applications. It is compatible with PanelSeT SM floor standing steel enclosure. It has a nominal height and width of 2000 mm and 1000 mm, respectively. The door is made of steel sheet, while the handle is made of polyamide 6 with 30% fiberglass. An epoxy-polyester powder finish provides a smooth appearance. It has a grey (RAL 7035) color with a black (RAL 9005) handle. It has an aperture up to 120 degrees and is reversible, meaning it can be opened from either side. The door has a four-point lock with a handle that has a 5 mm double-bar insert for security.

Technical specifications
Filter Property Value
Degree of protection (IP) IK10
Product type door
Width 1000 mm
Height 2000 mm
Version 1 pieces
Colour gray
Logistics
Property Value
Country of origin FR
Customs tariff number 94039910
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
