NSYSFND18122D | Schneider Electric

Door, 2 pieces, (H x W) 1800 x 1200 mm, NSYSFND18122D

Order No.: 06P8223
EAN: 3606486378076
MPN:
NSYSFND18122D
Series: PanelSet SFN
NSYSFND18122D Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
393.533 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
393.53 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
393.533 €

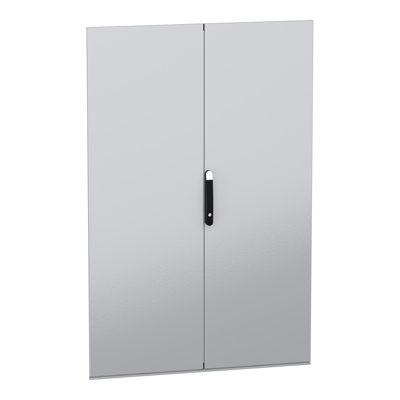

Double plain door, NSYSFND18122D, Schneider Electric

This double steel door is specially designed for mounting a PanelSeT SFN floor-standing enclosure made of decarbonised steel for various applications. It is compatible with the PanelSeT SM floor standing enclosure made of steel. It has a nominal height and width of 1800 mm and 1200 mm respectively. The doors are made of sheet steel, while the handle is made of polyamide 6 with 30% glass fibre content. An epoxy-polyester powder coating ensures an even appearance. It has a grey (RAL 7035) colour with a black (RAL 9005) handle. They have an opening angle of up to 120 degrees. The main door has a four-point lock with a handle that is fitted with a 5 mm double-bit for security, while the secondary door has a bolt system with a handle. This product is categorised as Green Premium.

Features

  • Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
  • The handle design is both aesthetic and ergonomic and makes opening and closing easier
  • Sturdy, robust, and durable for maximum component protection
  • Reusable, environmentally friendly packaging with a significant reduction in single-use plastics
Technical specifications
Filter Property Value
Degree of protection (IP) IK10
Product type door
Width 1200 mm
Height 1800 mm
Version 2 pieces
Colour gray
Logistics
Property Value
Country of origin FR
Customs tariff number 94039910
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
