NSYSFND148T | Schneider Electric

Door, glazed, (H x W) 1400 x 800 mm, NSYSFND148T

Order No.: 06P8241
EAN: 3606486378274
MPN:
NSYSFND148T
Series: PanelSet SFN
NSYSFND148T Schneider Electric Modular enclosures
Image may differ
Unit Price (€ / pc.)
367.3649 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
367.36 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
367.3649 €

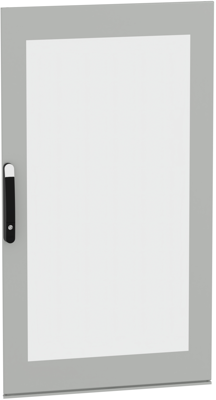

Glazed door, NSYSFND148T, Schneider Electric

This inspection door is specially designed for mounting a PanelSeT SFN floor-standing enclosure made of decarbonised steel for various applications. It has a nominal height and width of 1400 mm and 800 mm respectively. It has a nominal height and width of 1800 mm and 1200 mm respectively. The doors are made of sheet steel and safety glass, while the handle is made of polyamide 6 with 30% glass fibre content. An epoxy-polyester powder coating ensures an even appearance. It has a grey (RAL 7035) colour with a black (RAL 9005) handle. They have an opening angle of up to 120 degrees. The main door has a four-point lock with a handle that is fitted with a 5 mm double-bit for security, while the secondary door has a bolt system with a handle. This product is categorised as Green Premium.

Features

  • Built for the purpose of assembling a PanelSeT SFN electrical enclosure in kit version
  • The handle design is both aesthetic and ergonomic and makes opening and closing easier
  • Sturdy, robust, and durable for maximum component protection
  • Reusable, environmentally friendly packaging with a significant reduction in single-use plastics
Technical specifications
Filter Property Value
Degree of protection (IP) IK08
Product type door
Width 800 mm
Height 1400 mm
Version glazed
Colour gray
Logistics
Property Value
Country of origin FR
Customs tariff number 94039910
Compliance
Property Value
RoHS conform Yes
SVHC free No
Substance description Lead
Date of RoHS guidelines 3/31/15
