NSYSFN22660 | Schneider Electric

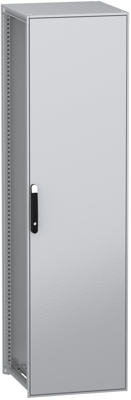

Floor standing enclosure, NSYSFN22660, Schneider Electric

This PanelSeT SFN is a floor standing enclosure made from decarbonised steel suitable for multi-purpose applications. It contains recycled steel produced with renewable energy, resulting in a significant reduction in CO2 emissions. It has a nominal height, width and depth of 2200mm, 600mm and 600mm respectively. The frame and supports of the enclosure are made of galvanised steel to ensure a long service life. The door and panels are made of sheet steel, while the handle is made of polyamide 6 with 30% glass fibre. An epoxy-polyester powder coating ensures an even appearance. The housing has a grey (RAL 7035) colour with a black (RAL 9005) handle. A single door, a rear panel, a roof, two slide rails and a kit of quick-fastening brackets. The door has an opening angle of up to 120 degrees and is reversible, meaning it can be opened from both sides. The door is fitted with a four-point lock and a handle with a 5 mm double-bit for security. The housing has IP55 protection, i.e. it is resistant to the ingress of dust, water and oil. The housing is also impact-resistant and has an IK10 rating. It is easy to operate thanks to access from the rear, front and side.

Features

• IEC and UL compliant making it sturdy, robust, and durable for maximum component protection
• Ergonomic design for convenience & time-saving operations
• Large choice of dimensions & accessories to simplify mounting and installation of electrical equipment
• Reusable, environmentally friendly packaging with a significant reduction in single-use plastics
