NSYLAMT5LD1 | Schneider Electric

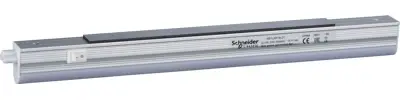

LED light, 5 W, 230 V, 500 lm, 4000 K, NSYLAMT5LD1

Order No.: 02P0619
EAN: 3606481190369
MPN:
NSYLAMT5LD1
NSYLAMT5LD1 Schneider Electric Luminaires and Light Fixtures
Image may differ
Unit Price (€ / pc.)
43.9229 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
43.92 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
43.9229 €

Cost-effective LED Lamps, NSYLAMT5LD1, Schneider Electric

This cost-effective LED Lamps without socket and with built-in switch have a power consumption of 5 W, the rated operational voltage is 120/230 V AC 50/60 Hz. The luminosity of the light is 500 lm, the light temperature is 4000 K and the LED service life is 25000 hours. The transparent cover and connectors are made of plastic, the body is made of aluminum, the lamp have an IP20 resistance to water and dust and is class 1 electrical insulated.

The dimensions of the lamp are (L) 310 mm x (H) 30.5 mm. It can be fixed on cross rails or metal parts with magnetic fixing or screws fixing. The fixing elements, a 1 and a 3 meters cables quick connector are supplied with the lamp. The storage temperature is -10 °C to 60 °C and the operating temperature is -16 °C to 65 °C.

Technical specifications
Filter Property Value
Degree of protection (IP) IP20
Power 5 W
max. operating temperature 60 °C
Version LED light
Colour temperature 4000 K
Width 22 mm
Height 30.5 mm
average nominal life 25000 h
Luminous flux 500 lm
min. operating temperature -10 °C
Colour aluminum
Rated voltage 230 V
Length 310 mm
Logistics
Property Value
Country of origin ES
Customs tariff number 94054131
Compliance
Property Value
SVHC free Yes
Date of RoHS guidelines 3/31/15
Sustainable Yes
RoHS conform Yes
