ZBVB15 | Schneider Electric

LED element, white, 24 V AC/DC, spring-clamp connection, ZBVB15

Order No.: 06P3994
EAN: 4099889260021
MPN:
ZBVB15
Series: Harmony XB4

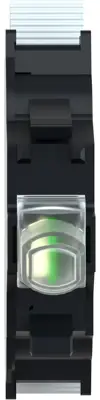

ZBVB15 Schneider Electric Lamp Holders Image 1

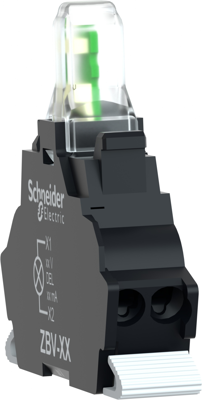

ZBVB15 Schneider Electric Lamp Holders Image 2

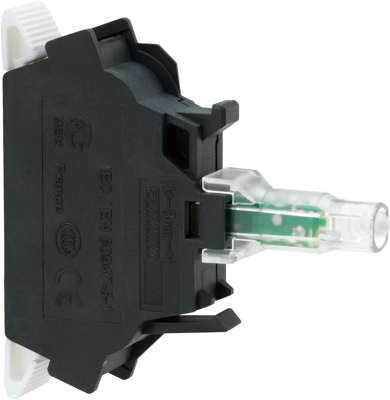

ZBVB15 Schneider Electric Lamp Holders Image 3

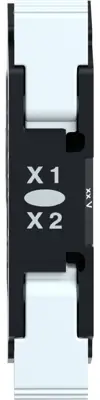

ZBVB15 Schneider Electric Lamp Holders Image 4

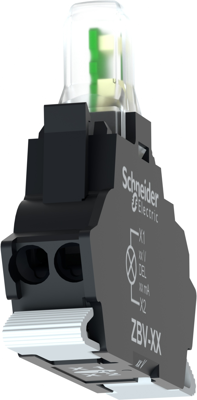

ZBVB15 Schneider Electric Lamp Holders Image 5
Image may differ
Unit Price (€ / pc.)
9.5676 € *
Available: 0 pcs.
Leadtime: 1 Week **
Total Price:
38.27 € *
*incl. VAT plus shipping costs
**Subject to prior sale
4 pcs.
9.5676 €

LED module, ZBVB15, Schneider Electric

This Harmony ZB, white light block operates with a universal LED. It is supplied with 24V AC/DC and uses spring terminals. It has a plastic body. It is compatible with Harmony XB4 and XB5. This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push-button or selector switch units via clip together assembly and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by universal LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Technical specifications
Type of mounting front mounting
Version lighting block
Voltage 24 V AC/DC
Connection spring-clamp connection
Colour of the LED white
Logistics
Country of origin FR
Customs tariff number 85318070
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
Sustainable Yes
