ZB5AV4 | Schneider Electric
Lamp socket, BA9s, 230 V, screw connection, ZB5AV4
Unit Price (€ / pc.)
33.5342 € *
Standard delivery time from the manufacturer is: 1 Week

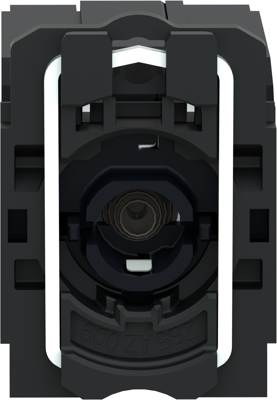

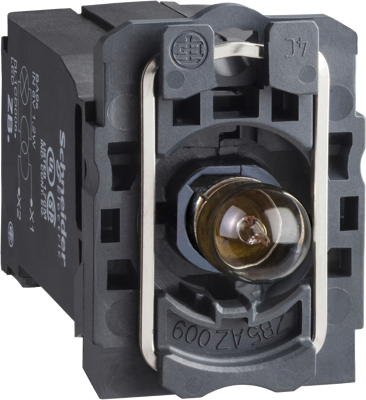

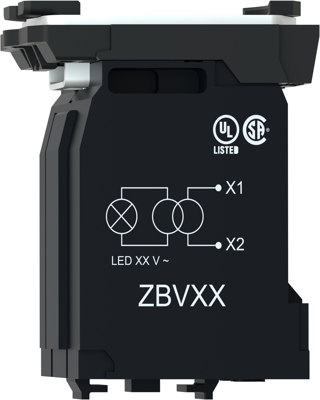

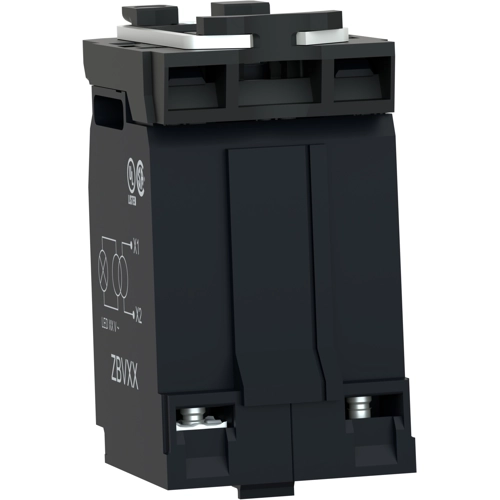

Lamp socket, ZB5AV4, Schneider Electric
This light block allows fast and easy replacement and configuration of your signaling units. It is easily installed and replaced on compatible illuminated push button or selector switch units . It is assembled via clips and connected with simple screw-clamp connections. It enables visual distinction of signaling units via illumination by BA9s base Integral LED. It protects operators from unexpected contact with live circuits thanks to its IP20 protection index.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | lamp socket | |
| Connection | screw connection | |
| Type of mounting | front mounting | |
| Voltage | 230 V | |
| Socket version | BA9s |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85318070 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| Substance description | Lead |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
