XD4PA24 | Schneider Electric
Joystick controller, 1 Form A (N/O) per direction, with retraction, groping, screw connection, IP66, XD4PA24
NCNR (non cancelable / non returnable)

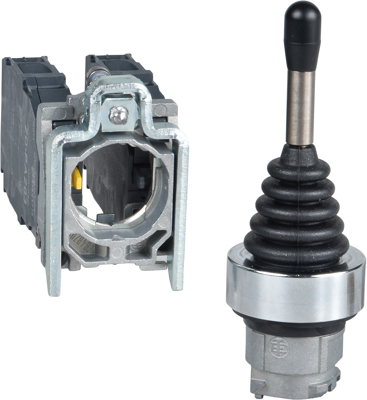

Joystick controller, XD4PA24, SCHNEIDER
The XD4PA24 offers a variety of 22 mm complete devices such as push buttons, indicator lights and selector switches through to emergency stop switches. In addition, due to the modular design of the devices, it is possible to purchase all components as individual elements and optionally also for 30 mm installation dimensions. Due to their quality, flexibility and extreme robustness, the devices are ideal for most industrial and building applications. This black joystick has 4 directions that can be operated in 1 step and has a return to zero position. The device has 1 closer per direction. Mounted in a 22 mm hole, the device is connected using spring clips on the back of the product. Suitable for international use due to the large number of existing product standards and certifications. Thanks to the Green Premium eco-label, you can receive detailed information on material content, environmental impact and circular economy that supports your sustainability goals.
Features
- Modular metal construction for quick and easy installation
- Ideal for universal use in industry, in machine and control cabinet construction as well as in buildings
- High robustness for harsh environmental conditions
- Excellent mechanical connection with the front element
| Filter | Property | Value |
|---|---|---|
| Version | 1 Form A (N/O) per direction, with retraction | |
| Latching switching function | groping | |
| Shift position | 4 | |
| Handle | conical | |
| Voltage | 250 VAC | |
| Connection | screw connection | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
| Property | Value |
|---|---|
| Substance description | Lead |
| SVHC free | No |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
