XD4PA12 | Schneider Electric
Joystick controller, 1 Form A (N/O) per direction, without retraction, latching, screw connection, IP66, XD4PA12
Unit Price (€ / pc.)
62.6654 € *
Standard delivery time from the manufacturer is: 1 Week

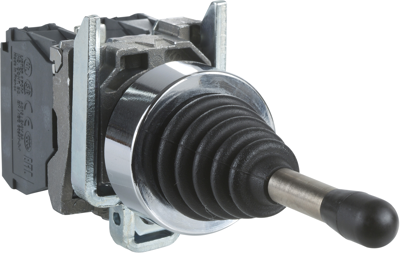

Joystick controller, XD4PA12, SCHNEIDER
The XD4PA12 operates with 2-direction stay-put mechanism. It has 2 x NO (1 per direction) contacts and a chromium-plated metal bezel. This joystick provides a versatile and intuitive interface for controlling your machines. It is easily installed into a standard 22 mm diameter cut-outs and connected to your control circuits with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66, making it ideal for operation in harsh environments. Its simple spring return mechanism is rugged and durable, high lifetime, less maintenance and replacement.
Technical specifications
| Version | 1 Form A (N/O) per direction, without retraction | |
| Latching switching function | latching | |
| Shift position | 2 | |
| Handle | conical | |
| Voltage | 250 VDC | |
| Connection | screw connection | |
| Degree of protection (IP) | IP66 |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85365080 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
| Sustainable | Yes |
