XD2GA8441 | Schneider Electric
Joystick controller, 2 Form A (N/O) per direction, plug-in connection, IP66, XD2GA8441
Unit Price (€ / pc.)
208.6189 € *
Standard delivery time from the manufacturer is: 1 Week

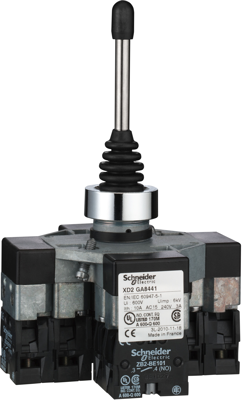

Joystick controller, XD2GA8441, SCHNEIDER
The XD2GA8441 is part of the range Harmony XD. It features 4 directions with two NO contacts per direction and screw connection type. It is easily installed into a standard 22 mm diameter cut-out or enclosures types XAL, XAM and XAP. It is designed for control of small materials, handling equipment, elevating work platforms, fork-lift trucks, etc. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Handle | straight | |
| Degree of protection (IP) | IP66 | |
| Version | 2 Form A (N/O) per direction | |
| Connection | plug-in connection | |
| Shift position | 4 | |
| Voltage | 240 VAC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85365080 |
| Country of origin | FR |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
