VW3A4426 | Schneider Electric
EMC filter, 23.9 A, 240 VAC, 7.5 kW, VW3A4426
Unit Price (€ / pc.)
195.8026 € *
Standard delivery time from the manufacturer is: 1 Week

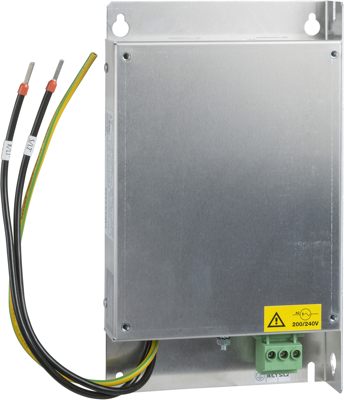

EMC input filter, VW3A4426, Schneider Electric
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32, Altivar machine ATV320 and Lexium 28. It is mounted beside the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | EMC filter | |
| Rated current | 23.9 A | |
| Rated Voltage | 240 VAC | |
| Power | 7.5 kW | |
| Number of phases | 1 |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | TH |
| Customs tariff number | 85480090 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | Yes |
