VW3A4425 | Schneider Electric
EMC filter, 50 to 60 Hz, 49 A, 500 VAC, VW3A4425
Unit Price (€ / pc.)
442.8942 € *
Standard delivery time from the manufacturer is: 1 Week

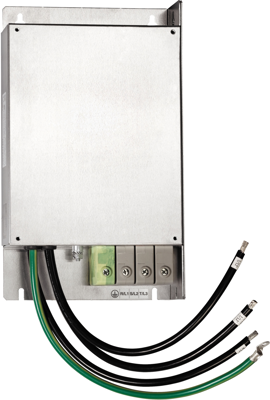

EMC input filter, VW3A4425, Schneider Electric
This EMC input filter enables your drive to be in compliance with electromagnetic compatibility requirements. It is designed to reduce conducted emissions on the supply mains and enlarge the maximum motor cable length. This product is compliant with IEC/EN 61800-3, category C1, C2 or C3, in Environment 1 (public network). It is compatible with Altivar 32 and Altivar machine ATV320. It is mounted underneath the variable speed drive. It acts as a support for the drives and is attached to them via tapped holes.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Number of phases | 3 | |
| Rated Voltage | 500 VAC | |
| min. frequency | 50 Hz | |
| Rated current | 49 A | |
| Version | EMC filter | |
| max. frequency | 60 Hz |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85480090 |
| Country of origin | TH |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
