RUMC21P7 | Schneider Electric
Relay, 2 Form C (NO/NC), 230 V (AC), 10 A, monostable, RUMC21P7
Unit Price (€ / pc.)
10.8052 € *
Available: 0 pcs.
Leadtime: On Request **

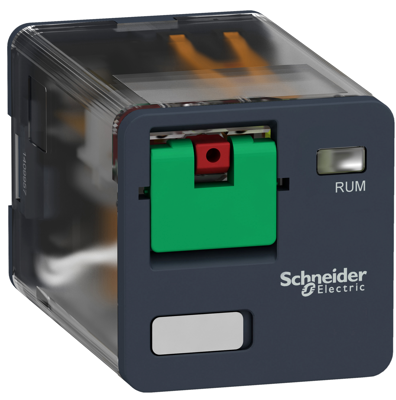

Universal plug-in relay, RUMC21P7, Schneider Electric
This Zelio RUM universal plug-in relay uses cylindrical pins, has a control coil voltage of 230V AC and has 2 changeover contacts double pole double throw with a rating of 10A. It provides a complete system solution for the most demanding applications. It also offers one-step lockable test button. It helps to reduce the size of enclosures and increase machine reliability you can mount nearly everywhere. The product is IP40 and has a transparent cover allowing operator to visually inspect the status of contacts. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs).
Technical specifications
| Connection | plug-in connection | |
| Contact type | 2 Form C (NO/NC) | |
| Contact material | AgNi | |
| switching current | 10 A | |
| Coil voltage (AC) | 230 V | |
| Coil type | monostable |
Download
Logistics
| Country of origin | CN |
| Customs tariff number | 85364900 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| Sustainable | Yes |
