A9C15410 | Schneider Electric
Impulse relay, 24-240 VAC, 240 V, A9C15410
Unit Price (€ / pc.)
47.4572 € *
Standard delivery time from the manufacturer is: 1 Week

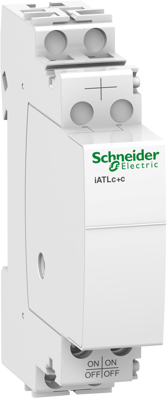

Impulse relay, A9C15410, Schneider Electric
This Acti9 iATLc+c is reliable multilevel centralized control auxiliary. Is operates with 24VAC to 240VAC control voltage. Mounting is performed on the right of iATLc+s or iATLc. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow centralized control of a group of iTLc or iTL+iATLc impulse relays. This product is compliant with EN/IEC 60669-2-2.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Rated voltage (AC) | 240 V | |
| Assembly | DIN rail | |
| Size | 86 x 18 x 71 mm | |
| Control Voltage | 24-240 VAC | |
| Dimmable | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85364900 |
| Country of origin | BE |
Compliance
| Property | Value |
|---|---|
| Substance description | Cadmium, lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
