IMT36183 | Schneider Electric
Cable gland, cable Ø 14 to 20 mm, M32, EPDM, gray, IMT36183
Unit Price (€ / pc.)
1.9159 € *
Available: 29 pcs.
Total Price:
1.92 € *
Price list
Quantity
Price per unit*
1 pcs.
1.9159 €
10 pcs.
1.8207 €
25 pcs.
1.7136 €
50 pcs.
1.6184 €
100 pcs.
1.5470 €
*incl. VAT plus shipping costs
Subject to prior sale

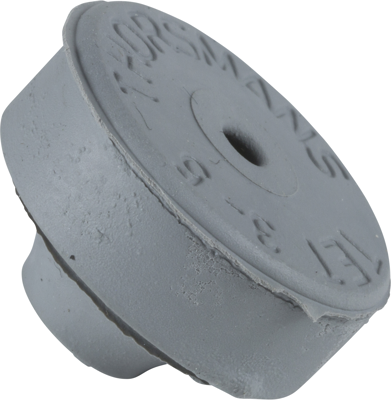

Thorsman TET - grommet, IMT36183, Schneider Electric
Thorsman TET - grommet is made Ethylene/propylene (EPDM) rubber. It is weather and temperature resistant and can be used both indoors and outdoors. This product is intended for completely dust and watertight sealing of cables, conduits and pipes, for example in cars, aeroplanes, ships, electrical and hydraulic equipment. The IP rating is IP67 which is very high. Also this product is qualified as a green premium product, with minimal use of hazardous substances.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. Cable diameter | 20 mm | |
| Colour | gray | |
| Mounting hole size | 32.4 mm | |
| Thread size | M32 | |
| Material | EPDM | |
| Product type | cable gland | |
| min. cable diameter | 14 mm |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369001 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
