NSYTBS29248T | Schneider Electric

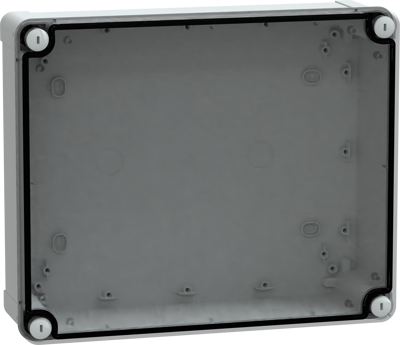

ABS enclosure, (L x W x H) 291 x 241 x 88 mm, light gray (RAL 7035), IP66, NSYTBS29248T

Order No.: 02P2766
EAN: 3606480165528
MPN:
NSYTBS29248T
Series: PanelSet TBS
NSYTBS29248T Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
45.1248 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
45.12 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
45.1248 €

ABS enclosure, NSYTBS29248T, Schneider Electric

Thalassa TBS industrial ABS box with, transparent cover H20. Interior is 275 x 225 x 80 mm. Exterior is 291 x 241 x 88 mm. Wall mounted enclosure, low transparent cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).

Technical specifications
Filter Property Value
Degree of protection (IP) IP66
Material ABS
RAL number 7035
Colour light gray
Length 291 mm
Width 241 mm
Height 88 mm
Logistics
Property Value
Country of origin HU
Customs tariff number 85381000
Compliance
Property Value
SVHC free Yes
RoHS conform Yes
Sustainable Yes
Date of RoHS guidelines 3/31/15
