NSYTBS1397T | Schneider Electric
ABS enclosure, (L x W x H) 138 x 93 x 72 mm, light gray (RAL 7035), IP66, NSYTBS1397T
Unit Price (€ / pc.)
13.3518 € *
Standard delivery time from the manufacturer is: On Request
Total Price:
13.35 € *
Price list
Quantity
Price per unit*
1 pcs.
13.3518 €
2 pcs.
12.7568 €
4 pcs.
12.2094 €
6 pcs.
11.5549 €
*incl. VAT plus shipping costs
Subject to prior sale

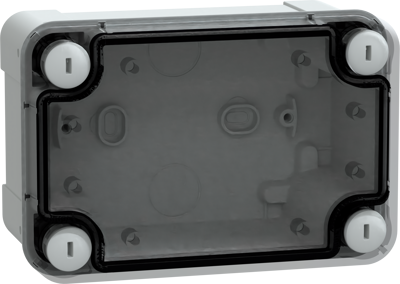

ABS enclosure, NSYTBS1397T, Schneider Electric
Thalassa TBS industrial ABS box with, transparent cover H20. Interior is 125 x 80 x 65 mm. Exterior is 138 x 93 x 72 mm. Wall mounted enclosure, low transparent cover. Outside sealed. Certifications is DEMKO, SEMKO, TÜV. Fire resistance 650°. ABS (acrylonitrile butadiene-styrene). IP66 (NEMA 4.4 x ), IK07, Grey RAL 7035, Insulation Class II. Set of 2. Ambient temperature for storage/operation is (-15 to 40 °C)/(-25 to 60 °C).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Length | 138 mm | |
| Colour | light gray | |
| Width | 93 mm | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66 | |
| Height | 72 mm | |
| Material | ABS |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | HU |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
