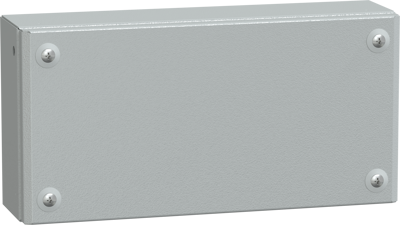

Steel enclosure, (L x W x H) 200 x 300 x 80 mm, light gray (RAL 7035), IP66, NSYSBM20308
NCNR (non cancelable / non returnable)
Steel enclosure, NSYSBM20308, Schneider Electric
Spacial SBM steel industrial box for a multi-purpose application. It is designed for use in harsh environments. It can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529). This box has a nominal height, width and depth of 200 mm, 300 mm and 80 mm, respectively. The box is made in grey color (RAL-7035) with a polyester powder surface finish. The box consists of 4 cover screw, a cover and a body. It has a captive screw PZ2 outside the sealed area.
The cover can be removed for maintenance purposes, the net weight of the enclosure is 2,128 kg. It meets the standards of IEC 62208 and has an ambient air temperature range for storage and operation of -35-60°C and -35-80°C respectively Protection IP 66, IK10.
| Filter | Property | Value |
|---|---|---|
| Material | steel | |
| Length | 200 mm | |
| Width | 300 mm | |
| Height | 80 mm | |
| Colour | light gray | |
| RAL number | 7035 | |
| Degree of protection (IP) | IP66 |
| Property | Value |
|---|---|
| Customs tariff number | 85381000 |
| Country of origin | IN |
| Property | Value |
|---|---|
| SVHC free | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
