Steel enclosure, NSYSBM202012, Schneider Electric

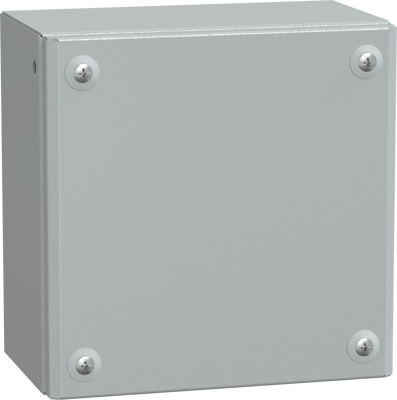

Spacial SBM steel industrial box for a multi-purpose application. It is designed for use in harsh environments. It can withstand high impact due its IK10 (IEC62262) and it has a high resistance to dust and water with an IP66 rating (IEC60529). This box has a nominal height, width and depth of 200 mm, 200 mm and 120 mm, respectively. The box is made in grey color (RAL-7035) with a polyester powder surface finish. The box consists of 4 cover screw, a cover and a body. It has a captive screw PZ2 outside the sealed area.
The cover can be removed for maintenance purposes, the net weight of the enclosure is 1,894 kg. It meets the standards of IEC 62208 and is certified by LR, DNV-GL, UL and BV The enclosure type is flat face box and it is mounted on a wall The cover fixing is done with half turn metal screws.
