NSYPLS3672AG | Schneider Electric
Polyester enclosure, (L x W x H) 360 x 720 x 230 mm, light gray (RAL 7035), IP66, NSYPLS3672AG
Unit Price (€ / pc.)
122.4629 € *
Standard delivery time from the manufacturer is: 1 Week
Polyester enclosure, NSYPLS3672AG, Schneider Electric

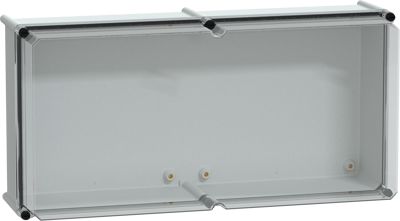

Thalassa PLS box polyester rear with transparent PC cover. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, 960 °C fire resistance. Insulation Class II.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Degree of protection (IP) | IP66 | |
| Material | polyester | |
| RAL number | 7035 | |
| Colour | light gray | |
| Length | 360 mm | |
| Width | 720 mm | |
| Height | 230 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | ES |
| Customs tariff number | 85381000 |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| RoHS conform | Yes |
| Sustainable | Yes |
| Date of RoHS guidelines | 3/31/15 |
