NSYPLS1827G | Schneider Electric

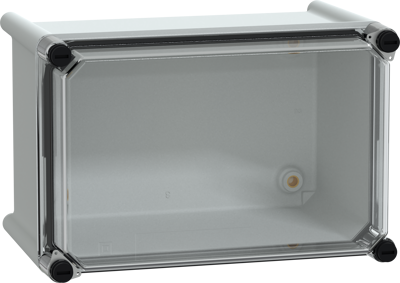

Polyester enclosure, (L x W x H) 180 x 270 x 180 mm, light gray (RAL 7035), IP66, NSYPLS1827G

Order No.: 02P2037
EAN: 3606480776816
MPN:
NSYPLS1827G
Series: PanelSet PLS
NSYPLS1827G Schneider Electric General Purpose Enclosures
Image may differ
Unit Price (€ / pc.)
43.1375 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
43.14 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
43.1375 €

Polyester enclosure, NSYPLS1827G, Schneider Electric

Thalassa PLS box polyester rear with transparent PC cover. Insulating modular box. One piece moulded body. Wall mounted. High transparent cover locking screw removable. Polyester reinforced with fibreglass rear, polycarbonate cover. Grey RAL 7035. IP65, IK09, 960 °C fire resistance. Insulation Class II.

Technical specifications
Degree of protection (IP) IP66
Material polyester
RAL number 7035
Colour light gray
Length 180 mm
Width 270 mm
Height 180 mm
Logistics
Country of origin ES
Customs tariff number 85381000
Compliance
SVHC free Yes
RoHS conform Yes
Sustainable Yes
Date of RoHS guidelines 3/31/15
