M9XCP256 | Schneider Electric
Comb rail, can be cut to length 2 pole, for C60BP (UL489) 56 modules, M9XCP256
Unit Price (€ / pc.)
257.0757 € *
Standard delivery time from the manufacturer is: 1 Week

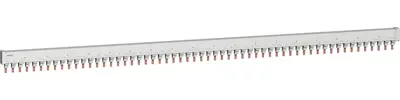

Comb rail, M9XCP256, Schneider Electric
Comb rail Multi 9 OEM for C60BP (UL 489), can be cut to length. 2-pole, rated current 80 A, 56 pitch units, step width 18 mm, operating voltage (Ue) 480 Y/277 V, insulation voltage (Ui) 1000 VAC. It is only used for C60BP circuit breakers according to UL 489, and it generates a voltage supply directly in the cage of the circuit breaker.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | comb rail | |
| Version | can be cut to length 2 pole | |
| Suitable for | C60BP (UL489) 56 modules |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85369010 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
