LUCL18B | Schneider Electric
Magnetic control unit, LUCL 4.5-18 A, 24 VAC, for power socket LUB32/LUB38/LUB320/LUB380/reversing contactor switch LU2B32B, LUCL18B
Unit Price (€ / pc.)
111.1460 € *
Available: 0 pcs.
Leadtime: 2 Weeks **

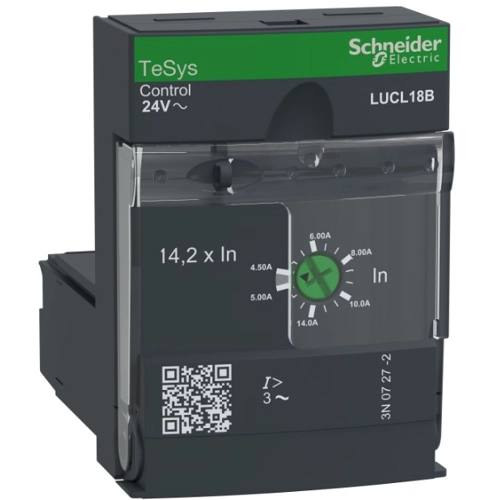

Magnetic control unit, LUCL18B, Schneider Electric
TeSys U magnetic control unit to be inserted in power bases LUB32, LUB38 to form a TeSys U starter controller, for 3-phase motor applications up to 7.5kW@400V. It provides short circuit protection to motors with a rated current In 4.5-18A (In adjustable by dial), overcurrent protection level at 14.2 x In. To be used when a power base is connected to a motor drive or a soft starter providing overload protection. To be used with a 24V AC voltage for the control of the starter (through the control terminals A1/A2 located in the power base). Certified when used in conjunction with a LUB power base (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical specifications
| Product type | Magnetische Steuerungseinheit | |
| Version | LUCL 4,5-18 A, 24 VAC | |
| Suitable for | Leistungssockel LUB32/LUB38/LUB320/LUB380/Wendeschützschalter LU2B32B |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85363030 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| Substance description | 1,2-Dimethoxyethan; Ethylenglykoldimethylether (EGDME) |
| Sustainable | Yes |
