GV2G454 | Schneider Electric
Three-phase busbar system, for TeSys-GV2/U/D/K, GV2G454
Order No.: 02P6683
EAN: 3389110555875
MPN:
GV2G454
Unit Price (€ / pc.)
16.541 € *
Available in 3 Days: 187 pcs. - if ordered today

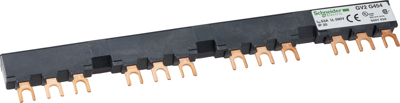

Three-phase busbar system, GV2G454, Schneider Electric
TeSys GV busbar set, 3 phases, 63 A/690 V, for the upstream parallel wiring of groups of motor starters composed of GV2 motor circuit breakers or LS1D32 fuse carriers. For use with screw clamp terminal devices, it is composed of 4 tap-off outlets for the paralleling of 2 devices with a pitch of 54mm. The use of a terminal block GV1G09 or GV2G05 is recommended to supply the busbar sets (to be ordered separately). Green Premium compliant (RoHS/REACh).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Suitable for | TeSys-GV2/U/D/K | |
| Product type | three-phase busbar system |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| Sustainable | Yes |
