A9C15924 | Schneider Electric

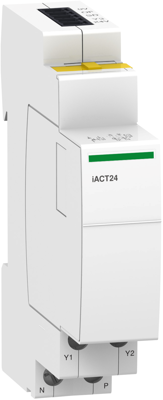

Auxiliary module, for remote switching iCT, A9C15924
Unit Price (€ / pc.)
67.6039 € *
Standard delivery time from the manufacturer is: 1 Week
Auxiliary module, A9C15924, Schneider Electric
This Acti 9 iACT24 is reliable control and indication auxiliary. It has 1 normally open signal contact. Control voltage is 24VDC and 230V AC. Mounting is performed on the left of Acti9 iCT contactors with operational current less than or equal to 25A. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. Mechanical endurance goes up to 250000 cycles. This product is compliant with IEC/EN 60947-5-1.
Technical specifications
| Product type | auxiliary module | |
| Suitable for | remote switching iCT |
Download
Logistics
| Country of origin | ES |
| Customs tariff number | 85365080 |
Compliance
| Substance description | 1, 2-dimethoxyethane; ethylene glycol dimethyl ether (EGDME), Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| Sustainable | Yes |
| SVHC free | No |
