50438 | Schneider Electric
Toroidal core, closed, for residual current protection relay PA, Ø 50mm, 50438
Unit Price (€ / pc.)
359.2491 € *
Standard delivery time from the manufacturer is: 1 Week

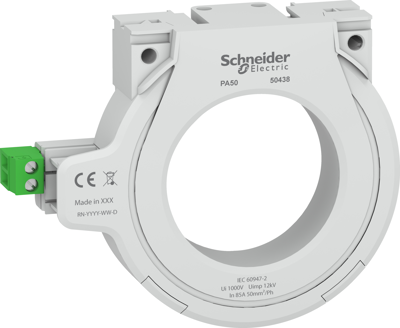

Closed toroid, 50438, Schneider Electric
This toroid enables the monitoring of the injected component of Vigilohm Insulation Monitor and the measurement of a rated current up to 85 A for VigiPacT monitoring and protection relays. The transmission ratio is 1/1000. The inner diameter of the toroid is 50 millimetres and the weight is 0.200 kg. The cables must be centred inside the toroid and the diameter of all these cables must not exceed 25 mm. The maximum cross-section per phase (R, S, T, N) is 50 mm² for a copper conductor.
Technical specifications
| Product type | toroidal core | |
| Version | closed | |
| Suitable for | residual current protection relay PA, Ø 50mm |
Download
Logistics
| Country of origin | FR |
| Customs tariff number | 85043180 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
