33801 | Schneider Electric

Auxiliary switch, 1 Form B (N/C) + 1 Form A (N/O), for Compact NS630b..1600, 33801

Order No.: 01P4380
EAN: 4099889160215
MPN:
33801
33801 Schneider Electric Fuses Accessories
Image may differ
Unit Price (€ / pc.)
48.2664 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
48.27 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
48.2664 €

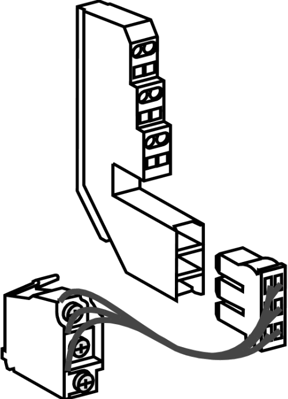

Auxiliary switch, 33801, Schneider Electric

It is a single standard auxiliary contact for drawout Compact NS630b to 1600 devices. This auxiliary contact that provides OF remote information of the circuit breaker status. The OF contact (open/closed) indicates the position of the circuit breaker main contacts. There is one auxiliary contact model for OF, SD or SDE information, depending on where it is fitted in the device. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 6 A and the minimum load is 100mA at 24 VDC. Utilization categories are AC12/AC13/DC12/DC14. Compact NS 630b to 1600 can be equipped with 3 OF auxiliary contacts. It complies with IEC 60947-5-1 standard.

Technical specifications
Product type auxiliary switch
Version 1 Form B (N/C) + 1 Form A (N/O)
Suitable for Compact NS630b..1600
Logistics
Country of origin NL
Customs tariff number 85389099
Compliance
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
