33109 | Schneider Electric
Auxiliary contact, 1 Form C (NO/NC) for Compact NS630b..1600/NS1600b..3200/INS/INV/NSX/NSX DC/Easypact CVS/Powerpact Multistandard, 33109
Unit Price (€ / pc.)
37.9372 € *
Available: 0 pcs.
Leadtime: On Request **

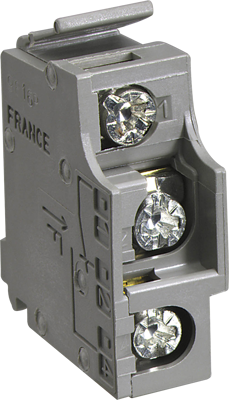

Auxiliary contact, 33109, Schneider Electric
It's a single low-level auxiliary contact that provides OF remote information of the circuit breaker status. The OF contact (open/closed) indicates the position of the circuit breaker main contacts. This auxiliary is a common point changeover type contact with 1 normally open contact and 1 normally closed contact. The rated current is 5 A and the minimum load is 1 mA at 4 VDC. It complies with IEC 60947-5-1 standard.
Technical specifications
| Suitable for | Compact NS630b..1600/NS1600b..3200/INS/INV/NSX/NSX DC/Easypact CVS/Powerpact Multistandard | |
| Accessory Type | auxiliary contact, 1 Form C (NO/NC) |
Download
Logistics
| Country of origin | NL |
| Customs tariff number | 85365080 |
Compliance
| RoHS conform | Yes |
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
